Soundproof Interior Vacuum Low-E 5mm Insulated Glass Panels

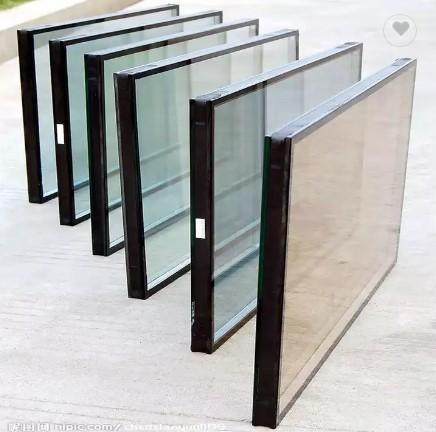

The Insulated glass is a prefabricated unit made of two or more glass panes, which have been separated by an air gap and edge sealed together.
This edge seal not only binds the individual sheets of glass together to maintain the mechanical strength of the joint but also protects the space between the glass from outside influences.
The air enclosed between the two glass panes is dried with a desiccant.
Because of the low heat conductivity of the enclosed dry air between the glass panes, heat transmission through the window is drastically reduced. Tempered, Laminated, reflective, low-E, tinted or clear glass can be used.
| Product name | Soundproof Interior Vacuum Low-E 5mm Insulated Glass Panels |
| Glass composition | Float glass, laminated glass, tempered glass,low-E glass,tinted glass etc. |
| Thickness | 1)Aluminum Spacer Width:6A,9A,12A,15A,17A,19A,20A,24A,etc. 2)Glass Thickness:3mm -19mm Normal sizes: 4mm+6A/9A/12A+4mm; 6mm+6A/9A/12A+6mm 8mm+6A/9A/12A+8mm etc. 6mm+9A+6mm+9A+6mm 3) As customer's requirements. |
| Size | 1)Max size: 3000mm x 8000mm Min size:200mmx200mm 2)According to the customer requirements |

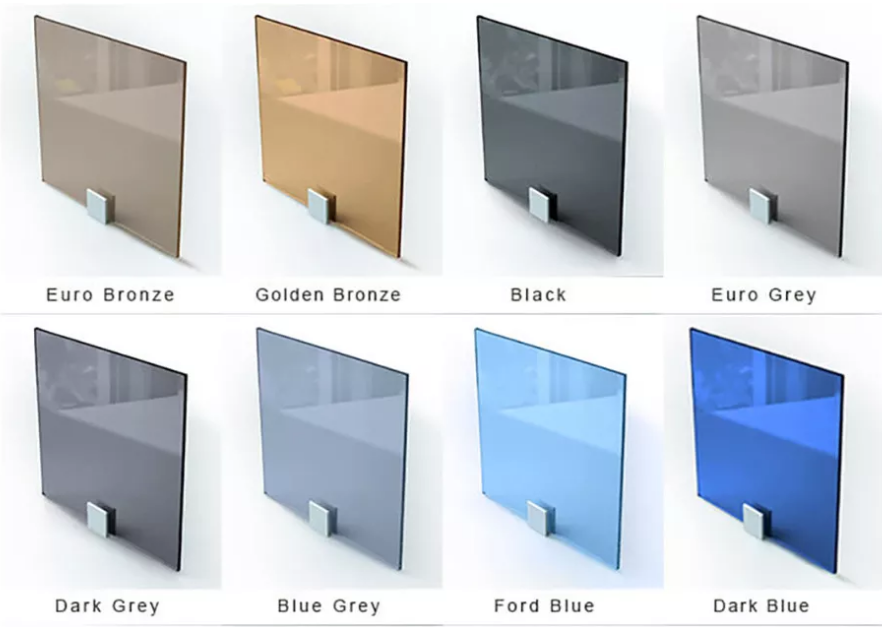

| Color | Clear,white,bronze,blue,gray, green, dark green, F-green, sapphire blue, ocean blue, bronze, dark gray, and golden etc. |
| Shape | 1)semi-circle 2)rectangle 3)arch 4)special shape |
| Filled Gas | 1) air 2) vacuum 3) argon, etc. |
| Application | 1)Office buildings, hospitals, hotels, houses and buildings with heating or cooling requirements. 2)For use in airport control towers, train windows and other environments that need regulated Airports and buildings near highways and railways, that require sound insulation properties. |
China Insulated glass is mainly used for exterior glass decoration: heating, air conditioning, noise blocking, condensation, and buildings that require no direct sunlight and special light sources. It is widely used in residential, hotel, hotel, office buildings, schools, hospitals, shops, etc. Not only that, but insulated glass can also be used for doors and windows on trains and cars, ships, freezer cabinets, etc. It is possible to reach the laboratory standard with vacuum double-layer tempered glass!
The unique structure of the insulated glass and the heat insulating effect of the hollow space layer effectively reduce the heat transfer coefficient and have excellent energy saving characteristics. Therefore, to extend the life of the insulated glass and improve the energy saving effect, China insulated glass manufacturers must ensure the high quality of the product, and also the insulated glass suppliers must provide the high-quality materials. Thus the insulated glass price will be different for the improvement of high-quality requirements.
